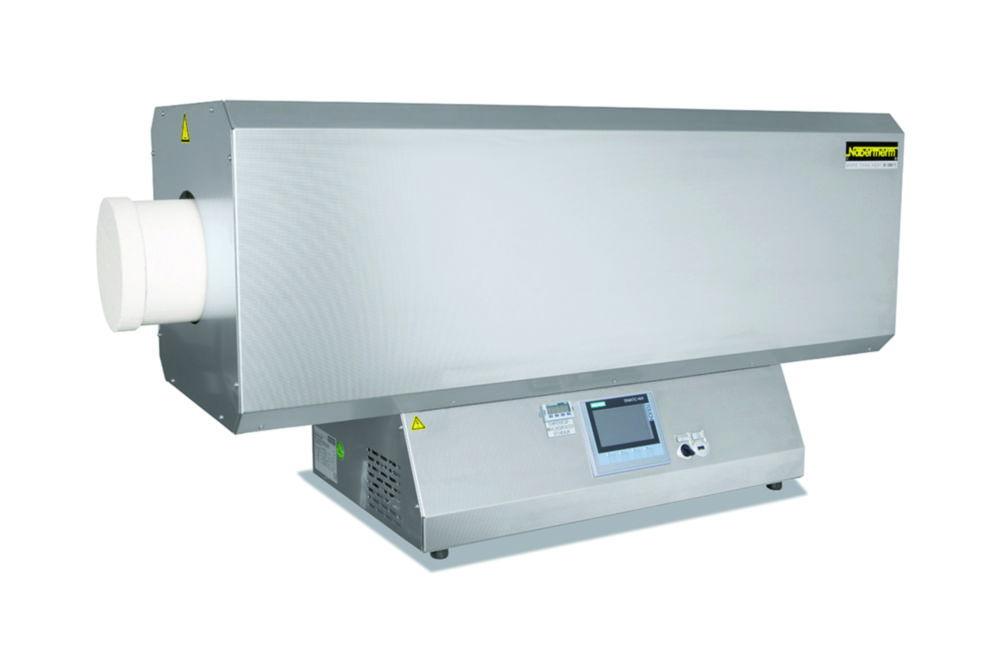

Representative image only
Nabertherm Compact Tube Furnace R 50/250/13/B510 (Max Temp 1300°C, Tube Diameter 40x450mm)
Sold by: John Morris Scientific Pty Ltd
Available Soon
Part #: 9.764 663Manufacturer #: R-152L3AN
Estimated shipping time:Contact us via live chat or via contact us page
See the available (27) variant productsProduct overview
The Nabertherm Compact Tube Furnace R 50/250/13/B510 is an ideal solution for high-temperature applications, featuring a maximum temperature of 1300°C and a tube diameter of 40mm with a 450mm heated length. This versatile tube furnace is equipped with the B 510 controller, providing precise temperature control for various applications, including material testing, sintering, and research. Its compact design makes it suitable for labs with limited space, offering excellent performance without compromising on reliability.
Key Features:
- Brand: Nabertherm
- Model: R 50/250/13/B510 Compact Tube Furnace
- Max Temperature: 1300°C
- Tube Dimensions: Diameter 40mm, Length 450mm
- Controller: B 510 controller for precise and easy temperature management
- Applications: Ideal for sintering, material analysis, research, and high-temperature testing
- Compact Design: Space-saving design with optimal heating efficiency for small-scale laboratory processes
Perfect for professionals looking for reliable and precise high-temperature control, the Nabertherm Compact Tube Furnace R 50/250/13/B510 is designed to meet the demanding requirements of industrial and research applications.
Product Specifications
- HS Code #85141980
- Depth340 mm
- Dimensions (WxDxH)434 x 340 x 508 mm
- Height508 mm
- Length tube450 mm
- Max. ext. tube Ø40 mm
- Max. temperature1300 °C
- Rated capacity1.6 W
- TypeR 50/250/13/B510
- Type of auxiliary energyMains connection
- Width434 mm
- Manufacturer Article NumberR-152L3AN
Nabertherm Compact Tube Furnace R 50/250/13/B510 (Max Temp 1300°C, Tube Diameter 40x450mm)
$13,764.97
Variant products
Products related to this item (27)
product | Mfr # | Part # | Product name | Type | Type of
auxiliary energy | Price | Availability | |
R-322W2AN3 | 4.660 556 | Nabertherm Compact Tube Furnace R 120/500/12/P580 (1200°C) with 3 Zones and Controller P580 | R 120/500/12/P580 | Mains connection | $21,416.35 | |||
R-572W2AN3 | 4.661 505 | Nabertherm Tube Furnace R 170/1000/12/P580 (1200°C) with Controller P580 | R 170/1000/12/P580 | Mains connection | $34,503.36 | |||
R-152O2AN | 4.661 498 | Nabertherm Tube Furnace R 50/250/12/C550 (1200°C) with Controller C550 | R 50/250/12/C550 | Mains connection | $15,271.13 | |||
R-322O2AN | 4.661 500 | Nabertherm Tube Furnace R 120/500/12/C550 (1200°C) | R 120/500/12/C550 | Mains connection | $19,599.87 | |||
R-572O3AN | 4.661 503 | Nabertherm Tube Furnace R 170/1000/13/C550 (1300°C) | R 170/1000/13/C550 | Mains connection | $36,989.91 | |||
R-252O3AN | 4.660 561 | Nabertherm Compact Tube Furnace R 50/500/13/C550 (1300°C) | R 50/500/13/C550 | Mains connection | $17,664.78 | |||
R-252W2AN3 | 4.660 555 | Nabertherm Compact Tube Furnace R 50/500/12/P580 (1200°C, 3-Zone) | R 50/500/12/P580 | Mains connection | $17,990.92 | |||
R-252W3AN3 | 4.660 562 | Nabertherm Compact Tube Furnace R 50/500/13/P580 (1300°C, 3-Zone) | R 50/500/13/P580 | Mains connection | $19,481.27 | |||
R-152O3AN | 4.660 559 | Nabertherm Compact Tube Furnace R 50/250/13/C550 (1300°C, 1-Zone) | R 50/250/13/C550 | Mains connection | $16,180.37 | |||
R-472W2AN3 | 4.660 557 | Nabertherm Compact Tube Furnace R 170/750/12/P580 (1200°C, 3-Zone) | R 170/750/12/P580 | Mains connection | $30,382.16 | |||
R-472O2AN | 4.661 501 | Nabertherm Tube Furnace R 170/750/12/C550 (1200°C, 3-Zone) with C550 Controller | R 170/750/12/C550 | Mains connection | $28,565.68 | |||
R-322O3AN | 4.660 564 | Nabertherm Compact Tube Furnace R 120/500/13/C550 (1300°C, 1-Zone) | R 120/500/13/C550 | Mains connection | $21,953.99 | |||
R-322L3AN | 9.764 667 | Nabertherm Compact Tube Furnace R 120/500/13/B510 (1300°C, Tube Dia. 100x850 mm) | R 120/500/13/B510 | Mains connection | $19,659.16 | |||
R-572O2AN | 4.661 504 | Nabertherm Tube Furnace R 170/1000/12/C550 (1200°C, Controller C-550) | R 170/1000/12/C550 | Mains connection | $33,301.59 | |||
R-252O2AN | 4.661 499 | Nabertherm Tube Furnace R 50/500/12/C550 (1200°C, Controller C-550) | R 50/500/12/C550 | Mains connection | $17,026.35 | |||
R-472W3AN3 | 4.660 566 | Nabertherm Compact Tube Furnace R 170/750/13/P580(1300°C, 3-Zone, Controller P-580) for Sintering and Heat Treatment | R 170/750/13/P580 | Mains connection | $33,244.27 | |||
R-572W3AN3 | 4.660 567 | Nabertherm Compact Tube Furnace R 170/1000/13/P580, Heated Length 1000 mm, Tube Diameter 170 mm, 3-Zone, Tmax 1300°C, Controller P 580 | R 170/1000/13/P580 | Mains connection | $38,774.77 | |||
R-472O3AN | 4.661 502 | Nabertherm Tube Furnace R 170/750/13/C550 (1300°C, 3-Zone, Controller C-550) | R 170/750/13/C550 | Mains connection | $32,020.76 | |||
R-322W3AN3 | 4.660 565 | Nabertherm Compact Tube Furnace R 120/500/13/P580 (1300°C, 3-Zone, Controller P-580) | R 120/500/13/P580 | Mains connection | $23,770.47 | |||
R-152L2AN | 9.764 651 | Nabertherm Compact Tube Furnace R 50/250/12/B510 (Max Temp 1200°C, Tube Dia 40x450mm) - High-Performance Tube Furnace | R 50/250/12/B510 | Mains connection | $12,855.74 | |||
R-252L2AN | 9.764 653 | Nabertherm Compact Tube Furnace R 50/500/12/B510 (Max Temp 1200°C, Tube Diameter 40x700mm) | R 50/500/12/B510 | Mains connection | $14,610.95 | |||
R-472L2AN | 9.764 659 | Nabertherm Compact Tube Furnace R 170/750/12/B410 (Max Temp 1200°C, Tube Diameter 150x1100mm) | R 170/750/12/B510 | Mains connection | $26,272.83 | |||
R-572L2AN | 9.764 661 | Nabertherm Compact Tube Furnace R 170/1000/12/B510 (Max Temp 1200°C, Tube Diameter 150x1350mm) | R 170/1000/12/B510 | Mains connection | $31,008.74 | |||
R-252L3AN | 9.764 665 | Nabertherm Compact Tube Furnace R 50/500/13/B510 (Max Temp 1300°C, Tube Dia 40x700mm) - High-Performance Tube Furnace | R 50/500/13/B510 | Mains connection | $16,180.37 | |||
R-472L3AN | 9.764 671 | Nabertherm Compact Tube Furnace R 170/750/13/B510, Tmax 1300°C, Tube Diameter 150x1100 mm | R 170/750/13/B510 | Mains connection | $29,727.91 | |||
R-572L3AN | 9.764 673 | Nabertherm Compact Tube Furnace R 170/1000/13/B510 (Max Temp 1300°C, Tube Diameter 150x1350mm) | R 170/1000/13/B510 | Mains connection | $34,736.59 | |||
R-322L2AN | 9.764 655 | Nabertherm Compact Tube Furnace R 120/500/12/B510, Tmax 1200°C, Tube Diameter 100x850 mm | R 120/500/12/B510 | Mains connection | $17,307.02 |
