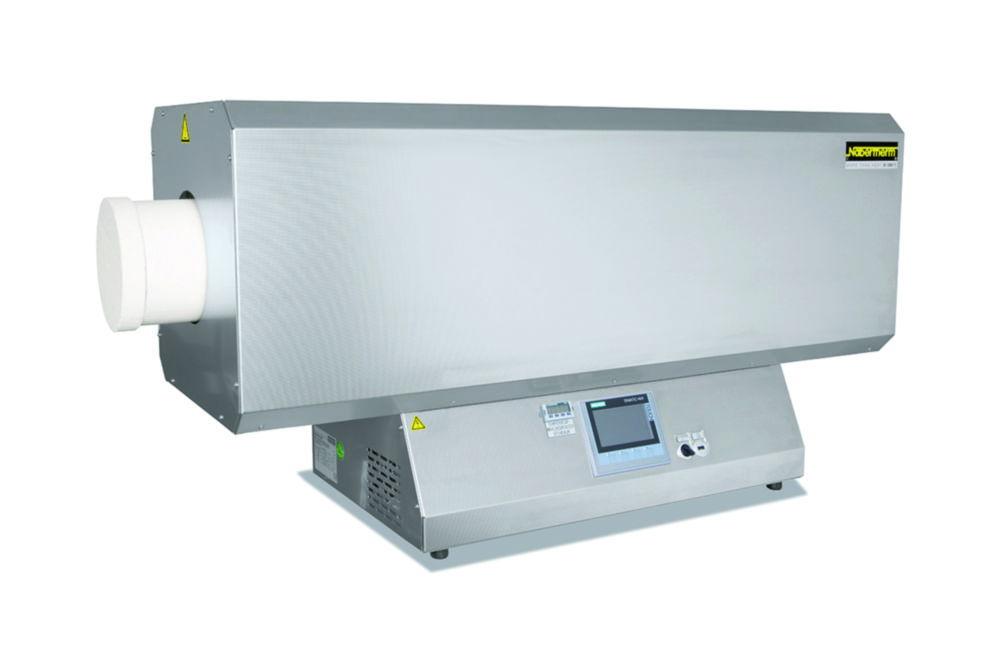

Representative image only
Nabertherm Compact Tube Furnace R 170/1000/13/B510 (Max Temp 1300°C, Tube Diameter 150x1350mm)
Sold by: John Morris Scientific Pty Ltd
Available Soon
Part #: 9.764 673Manufacturer #: R-572L3AN
Estimated shipping time:Contact us via live chat or via contact us page
See the available (27) variant productsProduct overview
The Nabertherm Compact Tube Furnace R 170/1000/13/B510 is engineered for high-performance applications, providing a maximum temperature of 1300°C with a tube diameter of 150mm and a 1350mm heated length. Featuring precise temperature control via the B 510 controller, this tube furnace is ideal for a variety of applications including sintering, material testing, and research. Its compact design ensures space efficiency, making it perfect for laboratory and industrial settings.
Key Features:
- Brand: Nabertherm
- Model: R 1170/1000/13/B510 Compact Tube Furnace
- Max Temperature: 1300°C
- Tube Dimensions: Diameter 150mm, Length 1350mm
- Controller: B 510 controller for precise and reliable temperature regulation
- Applications: Ideal for sintering, material analysis, research, and other high-temperature processes
- Compact Design: Efficient use of space, designed for laboratories with limited space
The Nabertherm Compact Tube Furnace R 170/1000/13/B510 is built for high-precision, high-temperature applications, providing consistent and reliable results for various industrial and laboratory needs.
Product Specifications
- HS Code #85141980
- Depth460 mm
- Dimensions (WxDxH)1,170 x 460 x 628 mm
- Height628 mm
- Length tube1350 mm
- Max. ext. tube Ø150 mm
- Max. temperature1300 °C
- Rated capacity11.5 W
- TypeR 170/1000/13/B510
- Type of auxiliary energyMains connection
- Width1170 mm
- Manufacturer Article NumberR-572L3AN
Nabertherm Compact Tube Furnace R 170/1000/13/B510 (Max Temp 1300°C, Tube Diameter 150x1350mm)
$34,736.59
Variant products
Products related to this item (27)
product | Mfr # | Part # | Product name | Type | Type of
auxiliary energy | Price | Availability | |
R-322W2AN3 | 4.660 556 | Nabertherm Compact Tube Furnace R 120/500/12/P580 (1200°C) with 3 Zones and Controller P580 | R 120/500/12/P580 | Mains connection | $21,416.35 | |||
R-572W2AN3 | 4.661 505 | Nabertherm Tube Furnace R 170/1000/12/P580 (1200°C) with Controller P580 | R 170/1000/12/P580 | Mains connection | $34,503.36 | |||
R-152O2AN | 4.661 498 | Nabertherm Tube Furnace R 50/250/12/C550 (1200°C) with Controller C550 | R 50/250/12/C550 | Mains connection | $15,271.13 | |||
R-322O2AN | 4.661 500 | Nabertherm Tube Furnace R 120/500/12/C550 (1200°C) | R 120/500/12/C550 | Mains connection | $19,599.87 | |||
R-572O3AN | 4.661 503 | Nabertherm Tube Furnace R 170/1000/13/C550 (1300°C) | R 170/1000/13/C550 | Mains connection | $36,989.91 | |||
R-252O3AN | 4.660 561 | Nabertherm Compact Tube Furnace R 50/500/13/C550 (1300°C) | R 50/500/13/C550 | Mains connection | $17,664.78 | |||
R-252W2AN3 | 4.660 555 | Nabertherm Compact Tube Furnace R 50/500/12/P580 (1200°C, 3-Zone) | R 50/500/12/P580 | Mains connection | $17,990.92 | |||
R-252W3AN3 | 4.660 562 | Nabertherm Compact Tube Furnace R 50/500/13/P580 (1300°C, 3-Zone) | R 50/500/13/P580 | Mains connection | $19,481.27 | |||
R-152O3AN | 4.660 559 | Nabertherm Compact Tube Furnace R 50/250/13/C550 (1300°C, 1-Zone) | R 50/250/13/C550 | Mains connection | $16,180.37 | |||
R-472W2AN3 | 4.660 557 | Nabertherm Compact Tube Furnace R 170/750/12/P580 (1200°C, 3-Zone) | R 170/750/12/P580 | Mains connection | $30,382.16 | |||
R-472O2AN | 4.661 501 | Nabertherm Tube Furnace R 170/750/12/C550 (1200°C, 3-Zone) with C550 Controller | R 170/750/12/C550 | Mains connection | $28,565.68 | |||
R-322O3AN | 4.660 564 | Nabertherm Compact Tube Furnace R 120/500/13/C550 (1300°C, 1-Zone) | R 120/500/13/C550 | Mains connection | $21,953.99 | |||
R-322L3AN | 9.764 667 | Nabertherm Compact Tube Furnace R 120/500/13/B510 (1300°C, Tube Dia. 100x850 mm) | R 120/500/13/B510 | Mains connection | $19,659.16 | |||
R-572O2AN | 4.661 504 | Nabertherm Tube Furnace R 170/1000/12/C550 (1200°C, Controller C-550) | R 170/1000/12/C550 | Mains connection | $33,301.59 | |||
R-252O2AN | 4.661 499 | Nabertherm Tube Furnace R 50/500/12/C550 (1200°C, Controller C-550) | R 50/500/12/C550 | Mains connection | $17,026.35 | |||
R-472W3AN3 | 4.660 566 | Nabertherm Compact Tube Furnace R 170/750/13/P580(1300°C, 3-Zone, Controller P-580) for Sintering and Heat Treatment | R 170/750/13/P580 | Mains connection | $33,244.27 | |||
R-572W3AN3 | 4.660 567 | Nabertherm Compact Tube Furnace R 170/1000/13/P580, Heated Length 1000 mm, Tube Diameter 170 mm, 3-Zone, Tmax 1300°C, Controller P 580 | R 170/1000/13/P580 | Mains connection | $38,774.77 | |||
R-472O3AN | 4.661 502 | Nabertherm Tube Furnace R 170/750/13/C550 (1300°C, 3-Zone, Controller C-550) | R 170/750/13/C550 | Mains connection | $32,020.76 | |||
R-322W3AN3 | 4.660 565 | Nabertherm Compact Tube Furnace R 120/500/13/P580 (1300°C, 3-Zone, Controller P-580) | R 120/500/13/P580 | Mains connection | $23,770.47 | |||
R-152L2AN | 9.764 651 | Nabertherm Compact Tube Furnace R 50/250/12/B510 (Max Temp 1200°C, Tube Dia 40x450mm) - High-Performance Tube Furnace | R 50/250/12/B510 | Mains connection | $12,855.74 | |||
R-252L2AN | 9.764 653 | Nabertherm Compact Tube Furnace R 50/500/12/B510 (Max Temp 1200°C, Tube Diameter 40x700mm) | R 50/500/12/B510 | Mains connection | $14,610.95 | |||
R-472L2AN | 9.764 659 | Nabertherm Compact Tube Furnace R 170/750/12/B410 (Max Temp 1200°C, Tube Diameter 150x1100mm) | R 170/750/12/B510 | Mains connection | $26,272.83 | |||
R-572L2AN | 9.764 661 | Nabertherm Compact Tube Furnace R 170/1000/12/B510 (Max Temp 1200°C, Tube Diameter 150x1350mm) | R 170/1000/12/B510 | Mains connection | $31,008.74 | |||
R-152L3AN | 9.764 663 | Nabertherm Compact Tube Furnace R 50/250/13/B510 (Max Temp 1300°C, Tube Diameter 40x450mm) | R 50/250/13/B510 | Mains connection | $13,764.97 | |||
R-252L3AN | 9.764 665 | Nabertherm Compact Tube Furnace R 50/500/13/B510 (Max Temp 1300°C, Tube Dia 40x700mm) - High-Performance Tube Furnace | R 50/500/13/B510 | Mains connection | $16,180.37 | |||
R-472L3AN | 9.764 671 | Nabertherm Compact Tube Furnace R 170/750/13/B510, Tmax 1300°C, Tube Diameter 150x1100 mm | R 170/750/13/B510 | Mains connection | $29,727.91 | |||
R-322L2AN | 9.764 655 | Nabertherm Compact Tube Furnace R 120/500/12/B510, Tmax 1200°C, Tube Diameter 100x850 mm | R 120/500/12/B510 | Mains connection | $17,307.02 |
