Representative image only

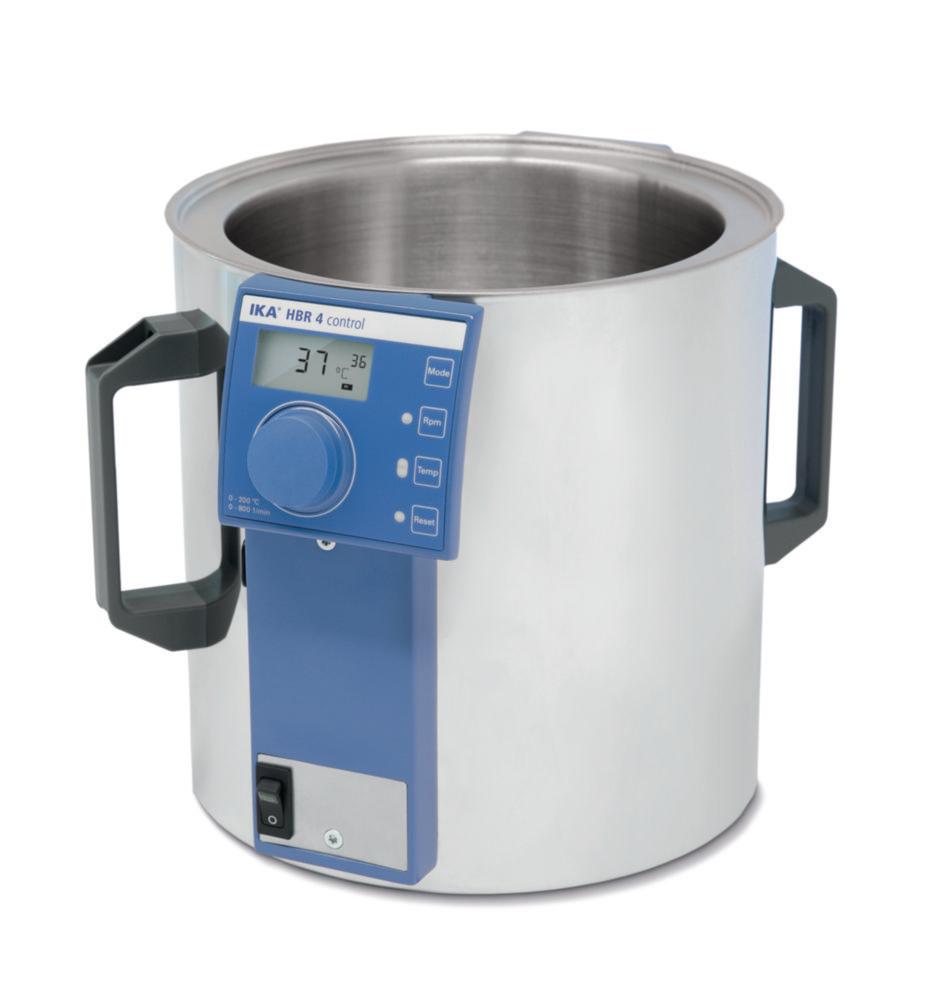

Heating bath HBR 4 control, 4 L
Sold by: John Morris Scientific Pty Ltd
Available Soon
Part #: 6.282 329Manufacturer #: 0020003549
Estimated shipping time:Contact us via live chat or via contact us page
Product overview
The heating bath is noted for:
- Cylindrical bath shape
- Heating elements integrated into the bath base
- Heat transfer media can be low-viscous oil (50 mPas) or water
- Two carry handles
- Infinitely variable safety temperature limiter according to DIN 12877
- Double-jacketed mantle protection against burns
- Digital display for target, actual and safety temperatures as well as speed
- Integrated magnetic stirrer drive to circulate the tempering fluid, allowing for better heat distribution in the bath
- RS 232 interface
Product Specifications
- HS Code #84198998
- Dimensions (WxH)200 x 160 mm
- DisplayDigital
- Ext. dim. (WxDxH)340 x 340 x 250 mm
- Ext. depth340 mm
- Ext. height250 mm
- Ext. width340 mm
- Power supply frequency50/60 Hz
- Heating capacity1000 W
- Height int.160 mm
- Int. Ø200 mm
- IP codeIP 20
- Material bathStainless steel 1.4301
- Max. speed800 1/min
- Max. temperature200 °C
- Max. voltage230 V
- Min. speed150 1/min
- Nominal capacity4 l
- Plug typeEU
- Power supply230 V, 50/60 Hz
- Speed150 ... 800 1/min
- TemperatureRT
- TemperatureRT ... 200 °C
- TypeHBR 4 control
- Type of auxiliary energyMains connection
- Weight4.4 kg
- With stirrer driveYes
- Manufacturer Article Number0020003549
Heating bath HBR 4 control, 4 L
$14,331.98
Just add items to your shopping cart and select “Instant Quote”
