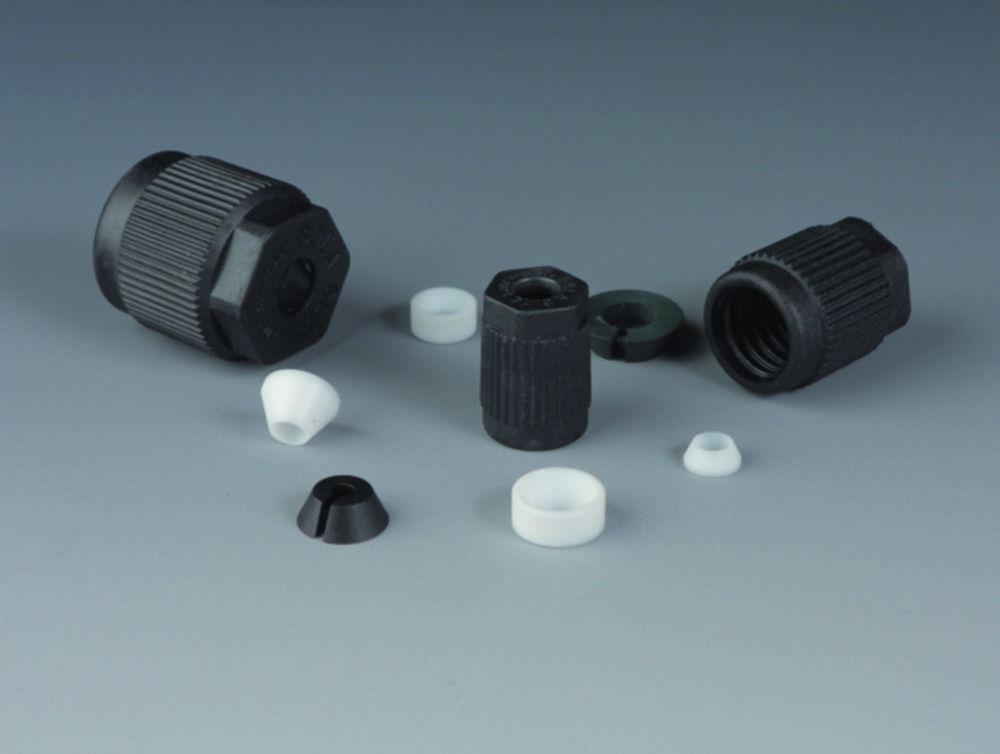

Name: Bohlender HT Laboratory Screw Joint GL 14 Ø 6.0mm SW 17 PPS
Brand: Bohlender
SKU: 6.900 068
Price: 88.95 AUD
Availability: InStock

Cleaning and Sterilisation

Cleanroom

Miscellaneous

Analytical Measurement and Testing

Chromatography

Distillation, separation, filtration

Environmental-, soil-, water-, food analysis

General Laboratory Consumables

Heating and cooling technology

Life Sciences

Liquid Handling

Occupational safety, Security

Optical instruments and Microscopes

Sample Preparation

Stirring, Shaking, Mixing

Vacuum technology, Drying, Dry storage

LabFriend Australia

facebook

twitter

youtube

LabFriend Corporate

LabFriend India

LabFriend Indonesia

LabFriend Korea

LabFriend Malaysia

LabFriend New Zealand

LabFriend  Philippines

LabFriend Singapore

LabFriend South Africa

LabFriend Sri Lanka

LabFriend Vietnam

LabFriend Taiwan

LabFriend MENA

The Bohlender HT Laboratory Screw Joint GL 14 Ø 1.0 mm, SW 17, PPS is engineered for high-temperature laboratory applications, ensuring secure connections between equipment and hard-walled tubing. Constructed with a black PPS screw cap and internal components made of PTFE and FKM, it offers exceptional chemical resistance and durability.

Key Features:
<ul>
 <li>Brand: Bohlender</li>
 <li>Thread Size: GL 14</li>
 <li>External Tubing Diameter: 1.0 mm</li>
 <li>Wrench Size (SW): 17 mm</li>
 <li>Material: PPS (cap), PTFE and FKM (sealing components)</li>
 <li>Temperature Resistance: -50°C to +250°C</li>
 <li>Pressure Resistance: Up to 10 bar; suitable for vacuum applications</li>
 <li>Applications: Ideal for connecting apparatus with GL threads to hard-walled tubing made of glass, plastic, or metal</li>
</ul>

This screw joint is an essential component for laboratories requiring reliable and chemically resistant connections in high-temperature environments.

Secure high-temp connections with Bohlender HT Laboratory Screw Joint GL 14 Ø 1.0 mm SW 17 PPS—durable and chemically resistant.

Bohlender HT Laboratory Screw Joint GL 14 Ø 1.0 mm SW 17 PPS

Bohlender HT Laboratory Screw Joint GL 14 Ø 1.0 mm, SW 17, PPS

HT Laboratory Screw Joint GL 14 Ø 1,0 mm, SW 17, PPS

The Bohlender HT Laboratory Screw Joint GL 14 Ø 3.0 mm, SW 17, PPS is engineered for high-temperature applications, offering reliable connections between GL-threaded equipment and hard-walled tubing. Constructed with a black PPS screw cap and internal components comprising a clamping ring (PPS), sealing wedge and sealing plate (both PTFE), and an O-ring (FKM), this joint ensures that the medium only contacts PTFE, providing excellent chemical resistance.

Key Features:
<ul>
 <li>Brand: Bohlender</li>
 <li>Material: PPS screw cap; PTFE sealing components; FKM O-ring</li>
 <li>Thread Size: GL 14</li>
 <li>Suitable Tubing Outer Diameter: 3.0 mm</li>
 <li>Wrench Size (SW): 17 mm</li>
 <li>Temperature Resistance: -50°C to +250°C</li>
 <li>Pressure Resistance: Up to 10 bar; vacuum suitable</li>
 <li>Applications: Ideal for connecting equipment to hard-walled tubing in high-temperature laboratory settings</li>
</ul>

This screw joint is an essential component for laboratories requiring secure and chemically resistant connections in high-temperature environments.

Secure high-temperature connections with Bohlender HT Screw Joint GL 14 Ø 3.0 mm SW 17 PPS—durable and chemically resistant.

Bohlender HT Laboratory Screw Joint GL 14 Ø 3.0 mm SW 17 PPS

Bohlender HT Laboratory Screw Joint GL 14 Ø 3.0 mm, SW 17, PPS​

HT Laboratory Screw Joint GL 14 Ø 3,0 mm, SW 17, PPS

The Bohlender HT Laboratory Screw Joint GL 14 Ø 2.0 mm, SW 17, PPS is designed for secure and reliable connections in laboratory setups. Featuring a black screw cap made of PPS and inner components comprising a clamping ring (PPS), sealing wedge, and sealing plate (both PTFE), along with an additional O-ring (FKM), this screw joint ensures excellent chemical resistance and durability. The medium contacts only PTFE, making it suitable for sensitive applications. It is temperature resistant from -50°C to +250°C, pressure stable up to 10 bar, and vacuum compatible, making it ideal for connecting equipment and fittings with GL threads to hard-walled tubing made of glass, plastic, or metal.

Key Features:

<ul>
 <li>Brand: Bohlender</li>
 <li>Thread Size: GL 14</li>
 <li>For Tubing Ø: 2.0 mm</li>
 <li>Wrench Size (SW): 17</li>
 <li>Material: PPS cap with PTFE inner components</li>
 <li>Temperature Resistance: -50°C to +250°C</li>
 <li>Pressure Stability: Up to 10 bar</li>
 <li>Vacuum Compatibility: Yes</li>
</ul>

This screw joint is essential for laboratories requiring high-performance connections with excellent chemical resistance and thermal stability.

Secure your lab connections with the Bohlender HT Screw Joint GL 14 Ø 2.0 mm SW 17 PPS—durable, chemically resistant, and suitable for high-temperature applications.

Bohlender HT Laboratory Screw Joint GL 14 Ø 2.0 mm SW 17 PPS

​Bohlender HT Laboratory Screw Joint GL 14 Ø 2.0 mm, SW 17, PPS

HT Laboratory Screw Joint GL 14 Ø 2,0 mm, SW 17, PPS

The Bohlender HT Laboratory Screw Joint GL 14 Ø 4.0 mm, SW 17, PPS is designed for securely connecting equipment and fittings with GL threads to hard-walled tubing or tubes made of glass, plastic, or metal. It is also suitable for fixing probes, thermometers, dip tubes, or cables in reaction vessels. The black screw cap is made of PPS, with inner components consisting of a v-ring (PPS), a tapered ring and a sealing ring (both PTFE), and an o-ring (FKM) for tubing diameters under 3 mm (not exposed to the medium). This design ensures excellent chemical resistance, as the medium only contacts PTFE. The joint is temperature resistant from -50 to 250 °C, pressure stable up to 10 bar, and suitable for vacuum applications.

Key Features:

<ul>
 <li>Brand: Bohlender</li>
 <li>Thread Size: GL 14</li>
 <li>For External Tubing Ø: 4.0 mm</li>
 <li>Spanner Width (SW): 17 mm</li>
 <li>Material: PPS (cap), PTFE (sealing components), FKM (o-ring)</li>
 <li>Temperature Resistance: -50 to 250 °C</li>
 <li>Pressure Stability: Up to 10 bar</li>
 <li>Vacuum Suitability: Yes</li>
</ul>

This high-quality screw joint is essential for laboratories requiring reliable and chemically resistant connections in various research and analytical settings.

Secure your lab connections with Bohlender HT Screw Joint GL 14 Ø 4.0 mm—durable, chemically resistant, and suitable for high-temperature applications.

Bohlender HT Laboratory Screw Joint GL 14 Ø 4.0 mm SW 17 PPS

Bohlender HT Laboratory Screw Joint GL 14 Ø 4.0 mm, SW 17, PPS

HT Laboratory Screw Joint GL 14 Ø 4,0 mm, SW 17, PPS

The Bohlender HT Laboratory Screw Joint GL 14 Ø 1.6 mm, SW 17, PPS is a high-quality connector designed for secure and reliable connections in laboratory settings. Manufactured by Bohlender, this screw joint is ideal for connecting equipment and fittings with GL threads to hard-walled tubing made of glass, plastic, or metal.

Key Features:
<ul>
 <li>Brand: Bohlender</li>
 <li>Thread Size: GL 14</li>
 <li>Outer Diameter: 1.6 mm</li>
 <li>Spanner Width: SW 17</li>
 <li>Material: PPS (screw cap), PTFE (sealing components), FKM (O-ring)</li>
 <li>Temperature Resistance: -50°C to +250°C</li>
 <li>Pressure Resistance: Up to 10 bar; suitable for vacuum applications</li>
 <li>Chemical Resistance: High, as the medium contacts only PTFE components</li>
 <li>Applications: Ideal for securing probes, thermometers, dip tubes, or cables in reaction vessels</li>
</ul>

This screw joint ensures a tight and secure connection, making it an essential component for precise laboratory operations.

Secure and durable Bohlender HT Laboratory Screw Joint GL 14 Ø 1.6 mm SW 17 PPS for precise lab connections.

Bohlender HT Laboratory Screw Joint GL 14 Ø 1.6 mm SW 17 PPS

Bohlender HT Laboratory Screw Joint GL 14 Ø 1.6 mm, SW 17, PPS​

HT Laboratory Screw Joint GL 14 Ø 1,6 mm, SW 17, PPS

The Bohlender HT Laboratory Screw Joint GL 14 Ø 3.2 mm, SW 17, PPS is engineered for high-temperature laboratory applications, ensuring secure connections between equipment and hard-walled tubing. Featuring a black screw cap made of PPS and internal components comprising a clamping ring (PPS), sealing wedge, and sealing plate (both PTFE), along with an additional O-ring (FKM), this joint offers excellent chemical resistance. The medium contacts only PTFE, making it ideal for sensitive processes. It withstands temperatures from -50°C to +250°C and is pressure stable up to 10 bar, suitable for vacuum conditions.

Key Features:
<ul>
 <li>Brand: Bohlender</li>
 <li>Thread Size: GL 14</li>
 <li>For Tubing Ø: 3.2 mm</li>
 <li>Wrench Size (SW): 17</li>
 <li>Material: PPS (cap), PTFE (seals), FKM (O-ring)</li>
 <li>Temperature Resistance: -50°C to +250°C</li>
 <li>Pressure Stability: Up to 10 bar</li>
 <li>Application: Suitable for vacuum and high-temperature environments</li>
</ul>

This screw joint is essential for laboratories requiring reliable and chemically resistant connections in high-temperature settings.

Secure high-temp lab connections with Bohlender HT Screw Joint GL 14 Ø 3.2 mm SW 17 PPS. Durable and reliable.

Bohlender HT Laboratory Screw Joint GL 14 Ø 3.2 mm SW 17 PPS

Bohlender HT Laboratory Screw Joint GL 14 Ø 3.2 mm, SW 17, PPS

HT Laboratory Screw Joint GL 14 Ø 3,2 mm, SW 17, PPS

The Bohlender HT Laboratory Screw Joint GL 14 Ø 6.35 mm, SW 17, PPS is engineered for secure connections between GL-threaded equipment and rigid tubing made of glass, plastic, or metal. Ideal for applications such as fixing probes, thermometers, dip tubes, or cables in reaction vessels, this screw joint ensures reliable performance in demanding laboratory environments.

Key Features:
<ul>
 <li>Brand: Bohlender</li>
 <li>Thread Size: GL 14</li>
 <li>For Tubing Outer Diameter: 6.35 mm</li>
 <li>Spanner Width (SW): 17 mm</li>
 <li>Material: Black PPS screw cap with internal components made of PPS, PTFE, and FKM</li>
 <li>Temperature Resistance: -50 °C to +250 °C</li>
 <li>Pressure Stability: Up to 10 bar; suitable for vacuum applications</li>
 <li>Chemical Resistance: Medium only contacts PTFE components</li>
</ul>

This high-temperature laboratory screw joint is an essential component for laboratories requiring durable and chemically resistant connections in various analytical and research settings.

Secure GL 14 connections with Bohlender HT Screw Joint Ø 6.35 mm, SW 17—durable PPS design, chemical resistance, and high-temperature stability.

Bohlender HT Laboratory Screw Joint GL 14 Ø 6.35 mm SW 17 PPS

Bohlender HT Laboratory Screw Joint GL 14 Ø 6.35 mm, SW 17, PPS​

HT Laboratory Screw Joint GL 14 Ø 6,35 mm, SW 17, PPS

The Bohlender HT Laboratory Screw Joint GL 14 Ø 8.0 mm, SW 17, PPS is designed for secure and reliable connections in laboratory setups. Featuring a black screw cap made of PPS and inner components including a clamping ring (PPS), sealing wedge, and sealing plate (both PTFE), along with an additional O-ring (FKM), this screw joint ensures excellent chemical resistance. The medium contacts only PTFE, making it ideal for applications requiring high purity and resistance to aggressive substances.

Key Features:
<ul>
 <li>Brand: Bohlender</li>
 <li>Thread Size: GL 14</li>
 <li>Outer Tubing Diameter: 8.0 mm</li>
 <li>Wrench Size (SW): 17 mm</li>
 <li>Material: PPS cap with PTFE sealing components</li>
 <li>Temperature Resistance: -50°C to +250°C</li>
 <li>Pressure Resistance: Up to 10 bar</li>
 <li>Applications: Suitable for connecting equipment with GL threads to hard-walled tubing or tubes made of glass, plastic, or metal; fixing probes, thermometers, dip tubes, or cables in reaction vessels</li>
</ul>

This screw joint is an essential component for laboratories requiring durable and chemically resistant connections in various analytical and research applications.

Secure connections with Bohlender HT Screw Joint GL 14 Ø 8.0 mm, SW 17, PPS—durable, chemically resistant, and ideal for precise lab applications.

Bohlender HT Laboratory Screw Joint GL 14 Ø 8.0 mm SW 17 PPS

Bohlender HT Laboratory Screw Joint GL 14 Ø 8.0 mm, SW 17, PPS

HT Laboratory Screw Joint GL 14 Ø 8,0 mm, SW 17, PPS

The Bohlender Laboratory Screw Joint GL 14 Ø 5.0 mm, SW 17, PPS is designed for secure connections between GL-threaded equipment and hard-walled tubing made of glass, plastic, or metal. Ideal for fixing probes, thermometers, dip tubes, or cables in reaction vessels, this screw joint ensures reliable performance in various laboratory applications.

Key Features:
<ul>
 <li>Brand: Bohlender</li>
 <li>Thread Size: GL 14</li>
 <li>For External Tubing Ø: 5.0 mm</li>
 <li>Spanner Width (SW): 17 mm</li>
 <li>Material: PPS (Polyphenylene Sulfide) screw cap; inner components include a V-ring (PPS), tapered ring and sealing ring (both PTFE), and an O-ring (FKM) for tubing diameters under 3 mm</li>
 <li>Color: Black</li>
 <li>Temperature Resistance: -50 to 250 °C</li>
 <li>Pressure Stability: Up to 10 bar; suitable for vacuum applications</li>
 <li>Chemical Resistance: Excellent; the medium contacts only PTFE components</li>
 <li>Packaging: Sold individually</li>
</ul>

This screw joint is an essential component for laboratories requiring durable and chemically resistant connections in their experimental setups.

Secure your lab setups with Bohlender's GL 14 screw joint—5.0 mm tubing, SW 17, PPS material, high chemical resistance, and vacuum suitability.

Bohlender Laboratory Screw Joint GL 14 Ø 5.0 mm SW 17 PPS

Bohlender Laboratory Screw Joint GL 14 Ø 5.0 mm, SW 17, PPS

Laboratory screw joints GL 14 Ø 5,0 mm, SW 17, PPS

HT Laboratory Screw Joint GL 14 Ø 6,0 mm, SW 17, PPS_100205218

The Bohlender HT Laboratory Screw Joint GL 14 is designed for high-temperature applications in laboratory environments. It provides a secure and chemically resistant connection for tubing and equipment. Featuring a GL 14 thread, this screw joint accommodates tubing with an outer diameter of 6.0mm and a wrench size (SW) of 17mm.

Key Features:

<ul>
<li>Brand: Bohlender</li>
<li>Thread Size: GL 14</li>
<li>Compatible Tubing Outer Diameter: 6.0mm</li>
<li>Wrench Size (SW): 17mm</li>
<li>Material: Glass-fiber reinforced PPS (Polyphenylene Sulfide)</li>
<li>Temperature Resistance: -50°C to +250°C</li>
<li>Pressure Resistance: Up to approximately 10 bar at room temperature</li>
<li>Application: Ideal for connecting glass tubes with PTFE tubing, plastic, glass, and metal tubes</li>
</ul>

The Bohlender HT Laboratory Screw Joint GL 14 is an essential component for laboratories requiring secure and high-temperature resistant connections.

Bohlender HT Laboratory Screw Joint GL 14 Ø 6.0mm SW 17 PPS for secure, high-temperature lab connections. Resistant to 250°C and 10 bar.

Bohlender HT Laboratory Screw Joint GL 14 Ø 6.0mm SW 17 PPS – High-Temperature Resistant Connector

Bohlender HT Laboratory Screw Joint GL 14 Ø 6.0mm SW 17 PPS

Bohlender

HT Laboratory Screw Joint GL 14 Ø 6,0 mm, SW 17, PPS

product	Mfr #	Part #	Product name	Material	Colour	Price	Availability
	D 628-18	6.901 758	Bohlender HT Laboratory Screw Joint GL 14 Ø 1.0 mm, SW 17, PPS	PPS	Black	$169.99	Contact us
	D 628-50	6.304 933	Bohlender HT Laboratory Screw Joint GL 14 Ø 3.0 mm, SW 17, PPS	PPS	Black	$88.95	Contact us
	D 628-34	6.307 187	Bohlender HT Laboratory Screw Joint GL 14 Ø 2.0 mm, SW 17, PPS	PPS	Black	$110.69	Contact us
	D 628-66	7.601 156	Bohlender HT Laboratory Screw Joint GL 14 Ø 4.0 mm, SW 17, PPS	PPS	Black	$92.90	Contact us
	D 628-26	6.307 933	Bohlender HT Laboratory Screw Joint GL 14 Ø 1.6 mm, SW 17, PPS	PPS	Black	$110.69	Contact us
	D 628-58	6.303 128	Bohlender HT Laboratory Screw Joint GL 14 Ø 3.2 mm, SW 17, PPS	PPS	Black	$81.04	Contact us
	D 628-78	7.603 089	Bohlender HT Laboratory Screw Joint GL 14 Ø 6.35 mm, SW 17, PPS	PPS	Black	$136.38	Contact us
	D 628-82	6.084 147	Bohlender HT Laboratory Screw Joint GL 14 Ø 8.0 mm, SW 17, PPS	PPS	Black	$130.45	Contact us
	D 628-70	6.237 145	Bohlender Laboratory Screw Joint GL 14 Ø 5.0 mm, SW 17, PPS	PPS	Black	$148.24	Contact us

Bohlender HT Laboratory Screw Joint GL 14 Ø 6.0mm SW 17 PPS

Product overview

Product Specifications
